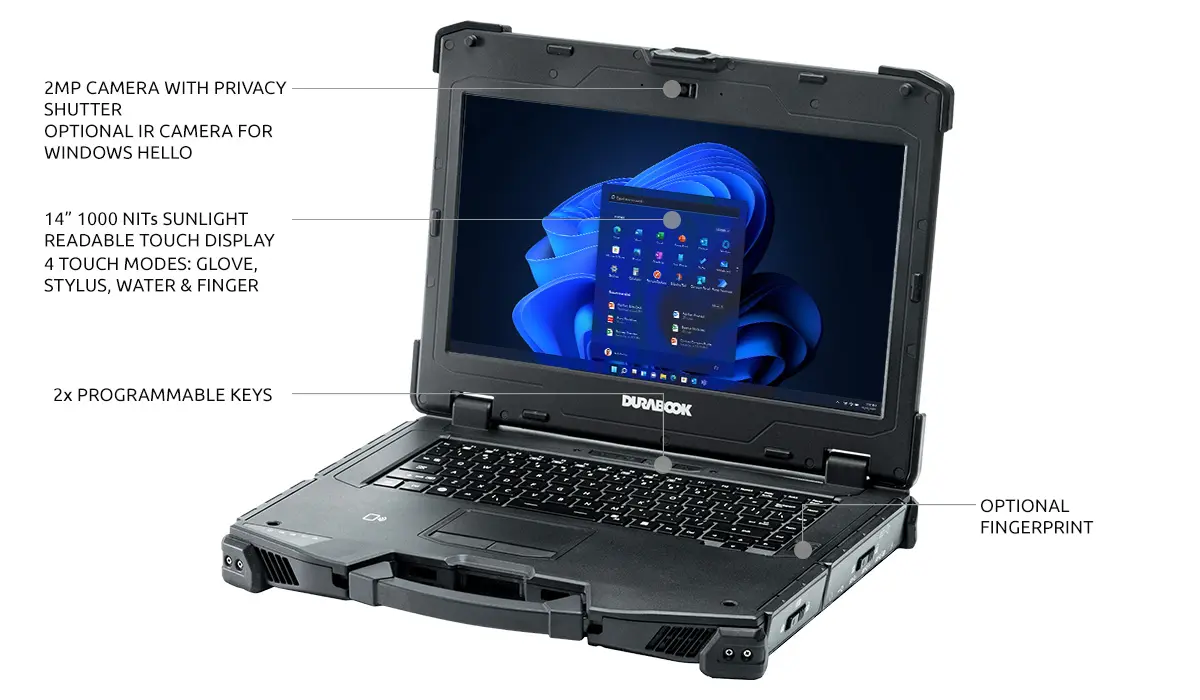

Display 14.0” FHD (1920 x1080)
1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen
User selectable touch mode for Finger/Water, Glove, or Stylus programmable function
Operating System Windows® 11 Pro 64-bit
Processors Intel® Core™ i7-1185G7 vPro™ (11th Gen) 3.0GHz processor with Turbo Boost Technology up to 4.8GHz, 12MB cache
Intel® Core™ i7-1165G7 (11th Gen) 2.8GHz processor with Turbo Boost Technology up to 4.7GHz, 12MB cache
Intel® Core™ i5-1145G7 vPro™ (11th Gen) 2.6GHz processor with Turbo Boost Technology up to 4.4GHz, 8MB cache
Intel® Core™ i5-1135G7 (11th Gen) 2.4GHz processor with Turbo Boost Technology up to 4.2GHz, 8MB cache
Memory 2 slots 8GB up to 64GB (3200MHz DDR4)
Storage Main: 256GB/512GB/1TB/2TB NVME PCIE SSD
Optional 256GB/512GB/1TB SATA SSD
Optional OPAL 2.0 SSD
Optional 2nd/3rd storage (SATA SSD)1
Graphics Intel® Iris® Xe Graphics
Optional NVIDIA® GEFORCE GTX 10501
Camera Integrated 2.0 MP web-cam with shutter design
Optional IR camera for Windows Hello1
Audio Integrated microphone
Intel® High Definition Audio Compliant
Integrated speaker x 2
Keyboard volume and mute controls
Media Bay
(One Option Only) Optional DVD super Multi
Optional 2nd battery
Optional SATA SSD
Expansion Box Optional PCI-Express 3.0 (2 slots)1,6
Optional discrete VGA1,6
Optional storage extension with RAID 0/1/5/101,6
Optional military-grade connectors1
I/O Ports Thunderbolt 4 (type C) x 1
USB 3.2 Gen2 (type C) x 1 (support DP)
USB 3.2 Gen2 (type A) x 1
USB 3.2 Gen1 (type A) x 1
USB 2.0 (type A) x 1
Audio in/out (combo jack) x 1
microSD card (microSDXC) x 1
10/100/1000 Ethernet (RJ45) x 2
VGA port (D-sub,15-pin) x 1
HDMI port (type A) x 1
Serial port (RS232 : D-sub,9-pin) x 25
Docking connector (41-pin Pogo) x 1
SIM card x 1
Smart card reader x 1
DC-In jack x 1
ExpressCard 54 x 1 (default) or PCMCIA Type II x 1
Optional RF antenna pass-through for GPS, WWAN, and WLAN
Keyboard & Input 2 user-definable keys (P1/P2)
RF signal slide-switch
Standard membrane keyboard with LED backlight
Communications Integrated 10/100/1000 Ethernet
Intel® Wi-Fi 6 AX201 (802.11 ax)
Bluetooth® V5.2
Optional dedicated GPS module (UBLOX-NEO-M8N)
Optional 4G LTE multi-carrier mobile broadband
Optional RF antenna pass-through for GPS, WWAN, and WLAN
Security Intel® vPro™ Technology (per CPU options)
TPM 2.0
NIST BIOS compliant
Easy removable SSD
Smart card reader
Stealth mode
Night vision mode
Kensington lock
Optional Windows Hello1
Optional fingerprint scanner
Optional LF/HF-RFID (NFC) reader1
Power AC adapter : 100-240V, 50Hz-60Hz, 90W
Optional AC adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA® VGA
Main battery Li-Ion, 10.8V, 6900mAh, 12.5 hours2
Optional 2nd battery Li-Ion 10.8V, 4700mAh, 9 hours2
Optional bridge battery : 5 minutes swap time3
Dimension & Weight 356 mm (L) x 280 mm (W) x 50 mm (H)4
3.6 kg4
Warranty 3-year limited warranty standard
